Aventure 3 Step Through Ebike

Embrace the All-Terrain
Quantity
ADD TO CART
BUY IT NOW
  • Detail

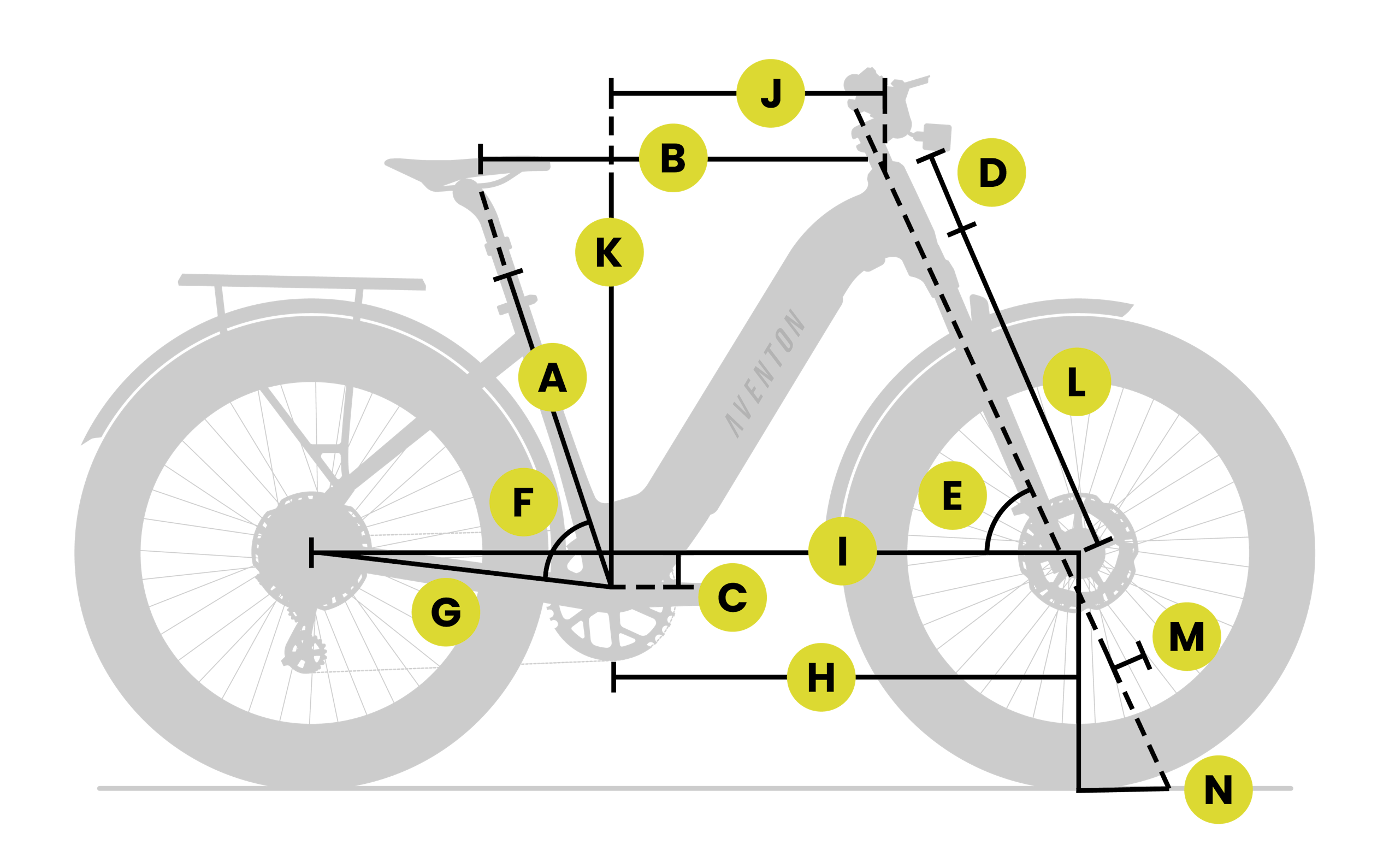

    Geometry

    Aventure 3 Step Through Ebike is available in 2 sizes to suit most adults.

    Frame Size Regular Large
    A - Seat Tube Length 400mm (15") 480mm (18")
    B - Top Tube Length Horizontal 602.5mm (23") 640.5mm (25")
    C - Bottom Bracket Drop 65mm (2") 65mm (2")
    D - Head Tube Length 130mm (5") 130mm (5")
    E - Head Tube Angle 67° 67°
    F - Seat Tube Angle 72° 72°
    G - Rear Chainstay Length 470mm (18") 470mm (18")
    H - Front Wheel Center 689.8mm (27") 727.6mm (28")
    I - Wheelbase 1152.2mm (45") 1190.2mm (46")
    J - Reach 390mm (15") 428mm (16")
    K - Stack Height 653.9mm (25") 653.9mm (25")
    L - Fork Length 525mm (20") 525mm (20")
    M - Fork Offset 43mm (1") 43mm (1")
    N - Trail 102.5mm (4") 102.5mm (4")
    Wheel Size in Inches 26" x 4.0" 26" x 4.0"
    Rider Height (Range) 150cm - 170cm (4'11" - 5'7") 170cm - 185cm (5'7" - 6'1")

    TECHNICAL SPECIFICATIONS

    General Info

    Model：
    Aventure 3 Step Through Ebike
    Weight：
    77 lbs
    Total Weight Limit：
    400 lbs
    Rider Height：
    R: 4'11" -5'7" | L: 5'7" - 6'1"
    Ebike Class：
    Class 2 Ebike
    Water Resistance：
    IPX6
    Range：
    Up to 65 miles
    Battery Safety Certifications：
    Certified to UL 2271
    Ideal Use：
    All-Terrain
    Bike Safety Certifications：
    UL Safety Certified
UL 2849

    Frameset

    Frame：
    6061 Aluminum, Gravity Cast Front Triangle
    Fork：
    Aventon/Zoom Suspension Fork, 80mm travel, with lockout
    Rear Spacing：
    190mm
    Fork Spacing：
    135mm
    Frame Style：
    Step-Through

    Wheelset

    Front Wheel：
    26", 36 hole, 13g, Double Wall Aluminum Fat Tire Rim, Nutted Axle, Schrader Valve
    Rear Wheel：
    26", 36 hole, 12g, Double Wall Aluminum Fat Tire Rim, Nutted Hub Drive, Schrader Valve
    Tires：
    Inova 26x4.0 puncture resistant

    Ebike System

    Speed：
    Class 2
    Motor：
    36V, 750W Hub Drive
    Motor Torque：
    80Nm
    Motor Power：
    750W (1188 Peak)
    Display：
    Aventon BC280
    Battery：
    Removable Internal Lithium-ion. 36V, 20Ah, 733Wh, LG 21700 cells
    Battery Weight：
    8.7lbs
    Controller：
    36V/33A
    Throttle：
    Aventon LH Handlebar Mounted
    Sensors：
    Double Sided Bottom Bracket Torque Sensor
    Charger：
    36V Output: 42V/ 4A
    Charging time from 0% to 100%：
    5 hours
    Lights：
    Front and rear lights integrated

    Brakes

    Front Brake：
    Tektro HD-E3520 hydraulic disc brakes w/ EJ1 quick disconnect wire
    Rear Brake：
    Tektro HD-E3520 hydraulic disc brakes w/ EJ1 quick disconnect wire
    Front Brake Rotor：
    Tektro 180mm 6 bolt
    Rear Brake Rotor：
    Tektro 180mm 6 bolt

    Drivetrain

    Rear Derailleur：
    Shimano Altus 8-Speed
    Shifter：
    Shimano 8-Speed Trigger
    Chain：
    7/8 Speed 118L
    Cassette：
    12-32T / 8 Speed Shimano CS HG200-8
    Chainring：
    48T
    Chainring BCD：
    N/A
    Crankset：
    3pc, 170mm crank arm
    Bottom Bracket：
    100x177 Square Taper, Double Sided Torque sensor bottom bracket
    Pedals：
    9/16" Alloy Platform

    Cockpit

    Saddle：
    Aventon Saddle
    Seatpost：
    Aventon Suspension Seatpost, Ø 30.9mm, 350mm Length. 50mm travel
    Seatpost Clamp：
    34.9mm
    Handlebars：
    Aluminum 31.8mm, 680mm
    Grips：
    Aventon Lock on grips
    Headset：
    Sealed bearing H887 Peilin 28.6mm * 56mm * 56mm H18.6mm 7pcs

    Included Accessories

    Kickstand：
    Included, rear mount
    Rear Rack：
    Included
    Fenders：
    Included

    Technical Overview

    The Aventure 3 ships as a Class II ebike, with pedal assist and throttle. The Aventure 3 will also operate with the throttle unplugged and removed, should you want to ride in an area that only allows Class I ebikes or throttles are prohibited. Aventon ebikes are built to the IPX6-rated standard. An IPX6 rating means the bike is protected against high-pressure water streams from any angle. This provides strong water resistance, so you can confidently ride in heavy rain or through puddles and mud. However, IPX6 does not mean waterproof—Aventon ebikes are not designed for full submersion. Avoid using a pressure washer or sprayer to clean your ebike, as pressurized water can still damage components. Max range is determined using PAS 1 on flat terrain with a rider weight of 160 lb.

    FEATURES

    Aventure 3 Step Through Ebike

    The Aventon Aventure 3 is the ultimate Ebike for adventure seekers, combining rugged performance with cutting-edge technology. Featuring 4" fat tires, a suspension fork, and an added suspension seatpost, the Aventure is built to conquer any terrain with ease. Now equipped with ACU technology that offers 4G †/GPS † capabilities and advanced anti-theft features, the Aventure 3 keeps you connected and your bike secure so the only thing you have to worry about is where your bike will take you next. Its powerful 750W motor, 65 miles of range, and Ride Tune customization ensures you can get where you want to go, with exactly as much power as you need to get there. No matter where you want to explore, the Aventure is ready to take on the challenge.
